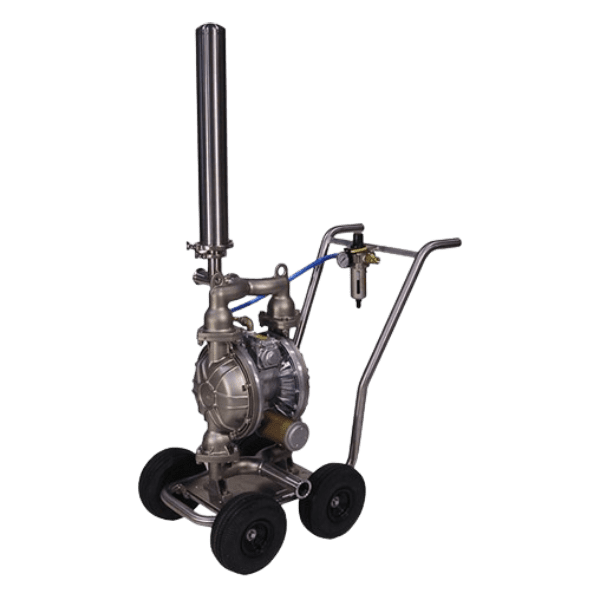

Yamada NDP-50 Wine Pump

Yamada NDP-50 Wine Pump

Add to wishlist

This pump will produce flows to 140 gpm and up to 100 psi, providing a great tool for barrel work, juice pans, screened pump overs, juice transfers and many other projects throughout your facility.

Specifications

Yamada NDP-50 BSH Double Diaphragm Air Pump

  • Non-lubricated air valve
  • Hytrel diaphragms
  • 2″ Triclamp inlet and outlet fittings
  • Stainless steel wetted parts

Air and Pressure Regulation

  • 1/2″ air filter, regulator
  • Ball valve control, (the air inlet fitting is to be supplied by the customer)

Surge Suppressor

  • Constructed of 304 stainless steel
  • 4″ diameter x 33″ tall
  • The suppressor has been designed to substantially reduce the pulse of the air pump

Cart

  • 1-1/2″ stainless steel tubing cart
  • Foam-filled tires with polypropylene hubs
  • Stainless steel fitting basket

The air requirement for all air pumps is .75 cfm to 1 gpm

Applications

  • Barrel Work
  • Juice Transfer
  • Screened Pump Overs
  • Bottling

Standard Features

  • Non-Lubricated Air Valve
  • Air Filter and Regulator
  • Stainless Steel Cart
  • Double Diaphragm
  • Triclamp or I-Line Fittings
  • Two-Year Warranty

Options

  • Doubling Kit for Increased Pressure
