Yamada NDP-25 Wine Pump

Specifications

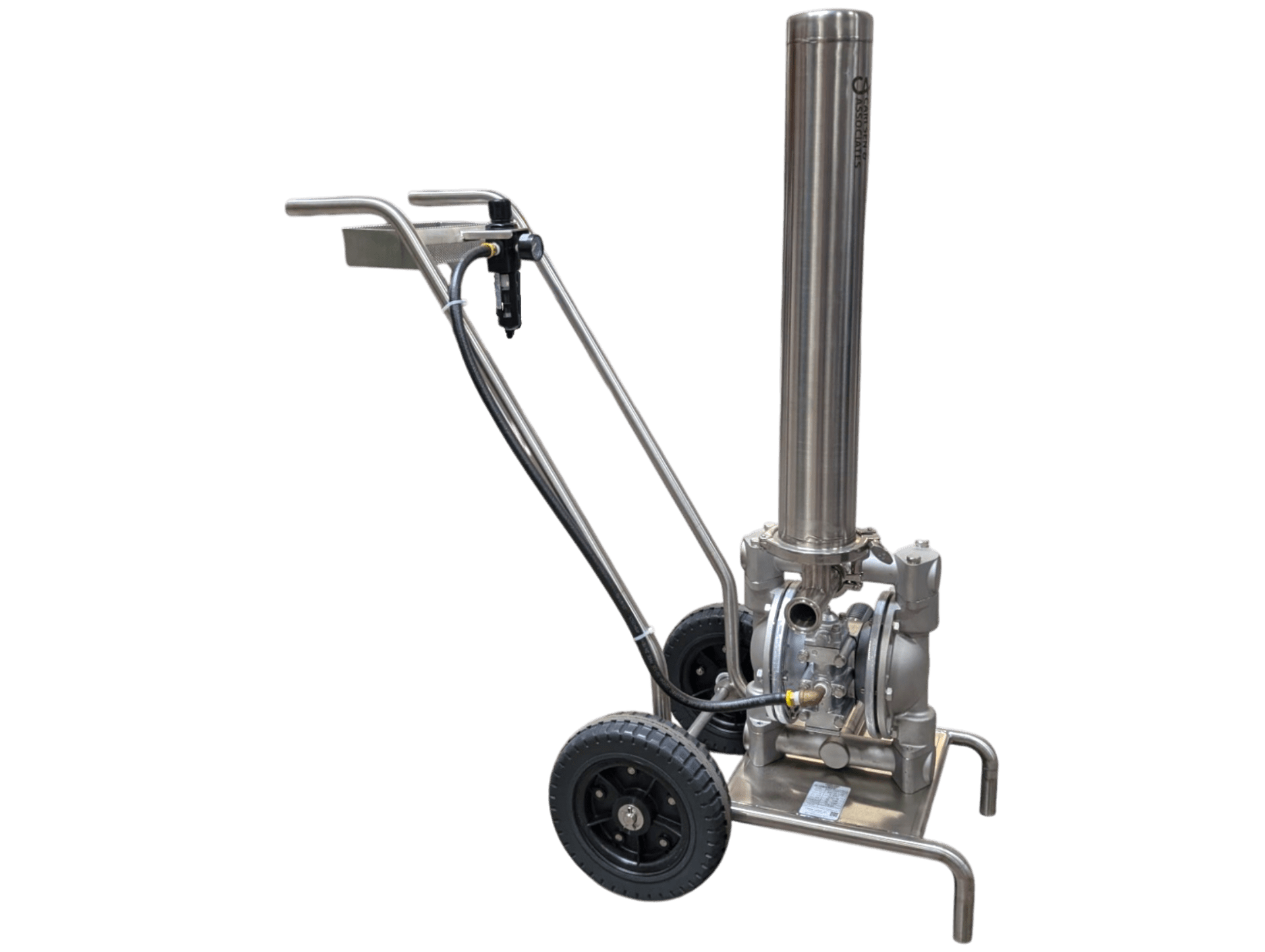

Yamada NDP-25 BSH Double Diaphragm Air Pump

• Non-lubricated air valve
• Hytrel diaphragms
• 1-1/2″ Triclamp inlet and outlet fittings
• Stainless steel wetted parts

Air and Pressure Regulation

• 3/8″ air filter, regulator
• Ball valve control, (the air inlet fitting is to be supplied by the customer)

Surge Suppressor

• Constructed of 304 stainless steel
• 4″ diameter x 31″ tall
• The suppressor has been designed to substantially reduce the pulse of the air pump

Cart

• Stainless steel tubing frame
• Foam-filled tires with polypropylene hubs
• Stainless steel fitting basket

The air requirement for all air pumps is .75 cfm to 1 gpm

Applications

• Barrel Work
• Topping
• Juice Transfer

Standard Features

• Non-Lubricated Air Valve
• Air Filter and Regulator
• Stainless Steel Cart
• Double Diaphragm
• Triclamp or I-Line Fittings
• Two-Year Warranty

Options

• Doubling Kit for Increased Pressure
