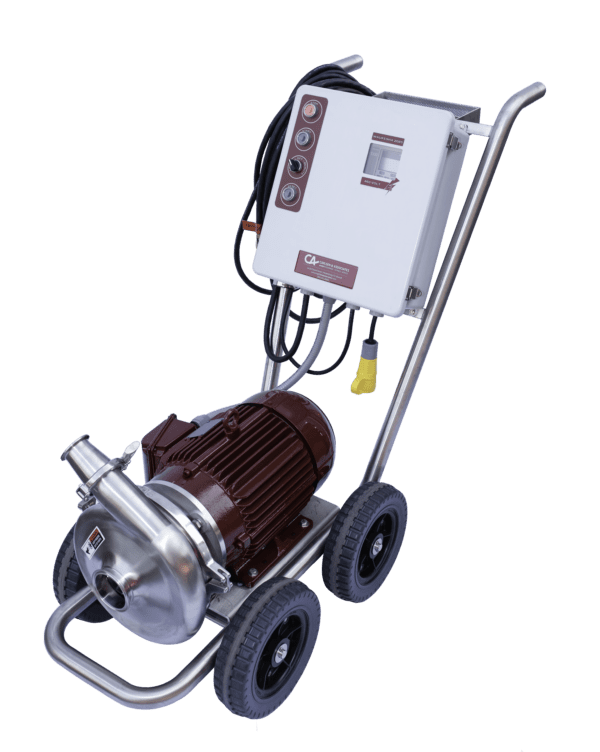

Waukesha 2085/15 Wine Pump
This pump will produce flows of approximately 350 gpm, at 125’ of head (55+ psi), making this pump ideal for pump overs, blends, juice transfers and tank to barrel work. The configuration of the pump also allows it to be used year-round for other cellar and crush pad projects.
Specifications
Waukesha 2085 Centrifugal Pump Head
- Constructed of 316 SST with electropolished finish
- 8 1/2″ 316L impeller
- 3″ Triclamp inlet
- 2-1/2″ Triclamp discharge
- Includes 3″ x 2-1/2″ adapter
Motor
- 15 hp @ 1750 rpm motor
- Totally enclosed, fan cooled
- C-Face JM frame
- Cast iron housing

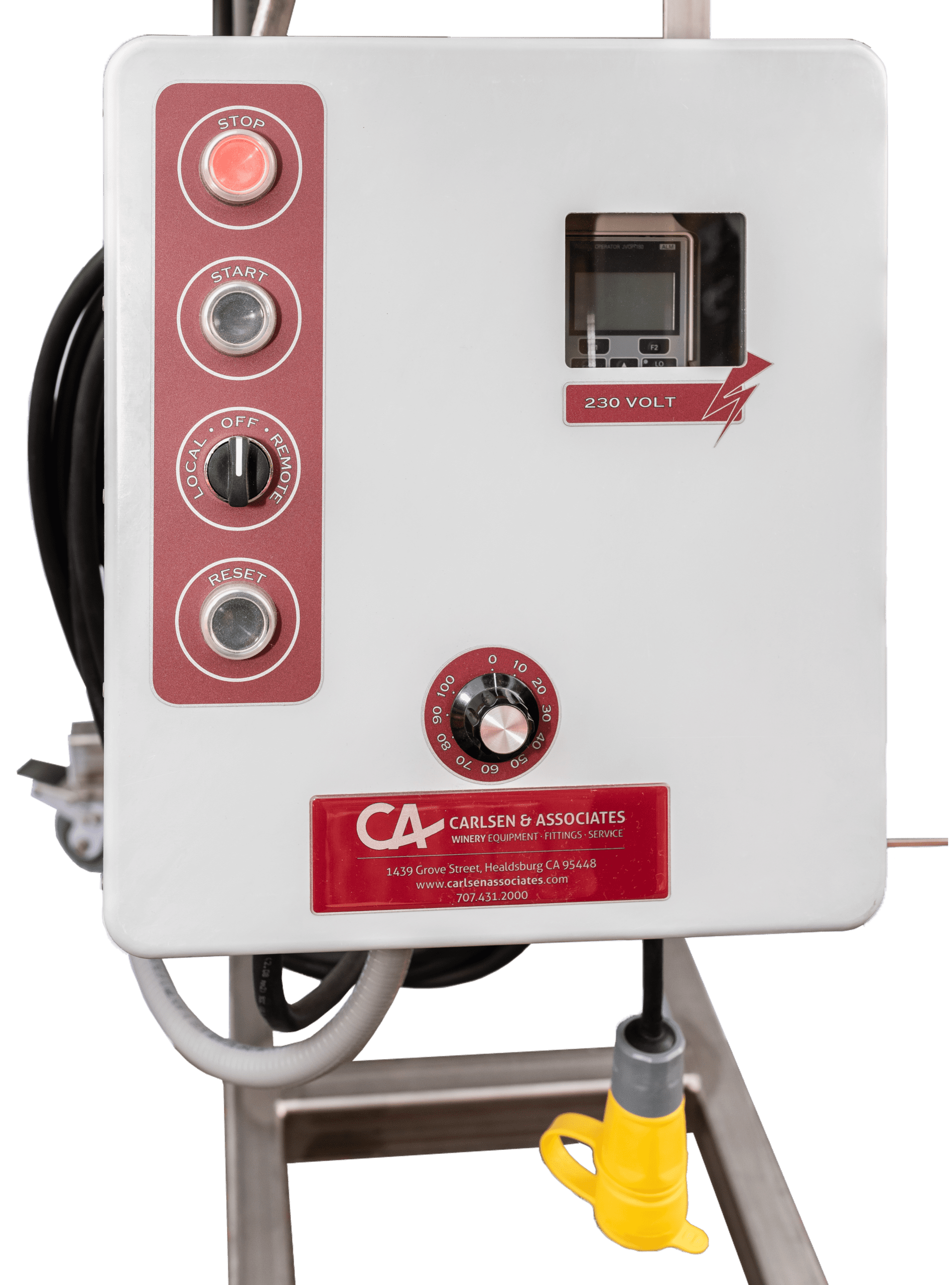

Electrical Controls
- Variable frequency drive
- Waterproof enclosure and switches
- Removable remote control feature with a three-position local/off/remote selector switch, 6″ pigtail and watertight cord connector (All of our remote devices are compatible with this connection)
- 50′ of power cord (the electrical plug is to be supplied by the customer)
- Automatic cavitation control
- Speed control mounted in a rubber-booted plastic housing with 50′ of cord
Cart
- Foam-filled tires with polypropylene hubs
- 1-1/2″ stainless steel tubing
- Stainless steel fitting basket
Applications
- Pump Overs
- Juice Transfer
- Barrel Racking
Standard Features
- Flows 0 – 350 gpm
- Pressures up to 55+ psi
- Domestic Motor
- Variable Frequency Drive
- NEMA 4X Enclosure
- Variable Speed
- Remote Speed Control
- Stainless Steel Cart
- Two-Year Warranty
Options Available
- Float Control
- Timer Control
- Fitting Variations
