Waukesha 2065HV/5 Wine Pump

Centrifugal Pumps

Our Waukesha Centrifugal 200 Series Pumps are mainly used in wineries for the pump over process and juice transfers. With the oversized housing in our HV Series, or the large impeller size in the 2085 Series, the pump allows solid particles to pass without damaging their structure. In addition to the winemaking benefits, the pumps unique seal system allows for simple and carefree maintenance. Another ideal pump in our line-up.

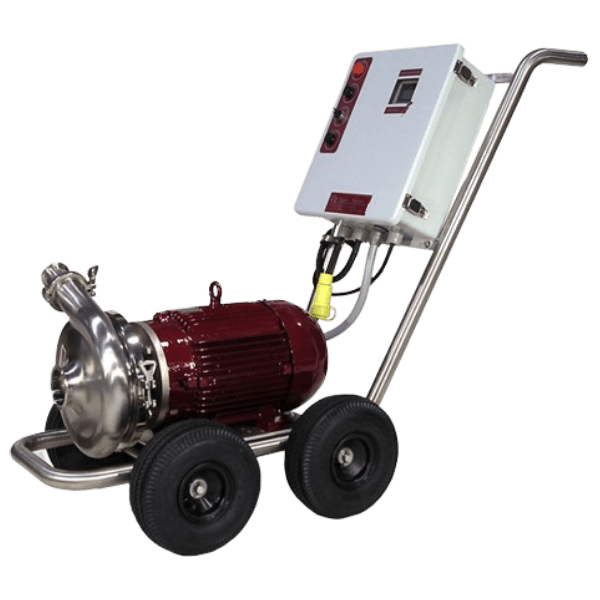

Waukesha 2065HV/5 Wine Pump

This pump will produce flows of approximately 140 gpm at 85’ of head (37+ psi), making this pump ideal for pump overs, blends, transfers and tank to barrel work. The variable frequency control also allows this pump to be used year-round for other cellar and crush pad projects.

Specifications

Waukesha 2065HV Centrifugal Pump Head

  • Constructed of 316 stainless steel with electropolished finish
  • 6 1/2″ 316L impeller
  • 2-1/2″ Triclamp inlet
  • 2″ Triclamp discharge
  • Includes 2″ x 2-1/2″ adapter

Motor

  • 5 hp @ 1750 rpm motor
  • Totally enclosed, fan cooled
  • C-Face JM frame
  • Cast iron housing

Electrical Controls

  • Variable frequency drive
  • Waterproof enclosure and switches
  • Removable remote control feature with a three-position local/off/remote selector switch, 6″ pigtail and watertight cord connector (All of our remote devices are compatible with this connection)
  • 50′ of power cord (the electrical plug is to be supplied by the customer)
  • Automatic Cavitation Control
  • Speed control mounted in a rubber-booted plastic housing with 50′ of cord

Cart

  • Foam-filled tires with polypropylene hubs
  • 1-1/2″ stainless steel tubing
  • Stainless steel fitting basket

Applications

  • Pump Overs
  • Juice Transfer
  • Barrel Racking

Standard Features

  • Flows 0 – 140 gpm
  • Pressures up to 37+ psi
  • Variable Frequency Drive
  • NEMA 4X Enclosure
  • Variable Speed
  • Remote Speed Control
  • Stainless Steel Cart
  • Two-Year Warranty

Options Available

  • Float Control
  • Timer Control
  • Fitting Variations
