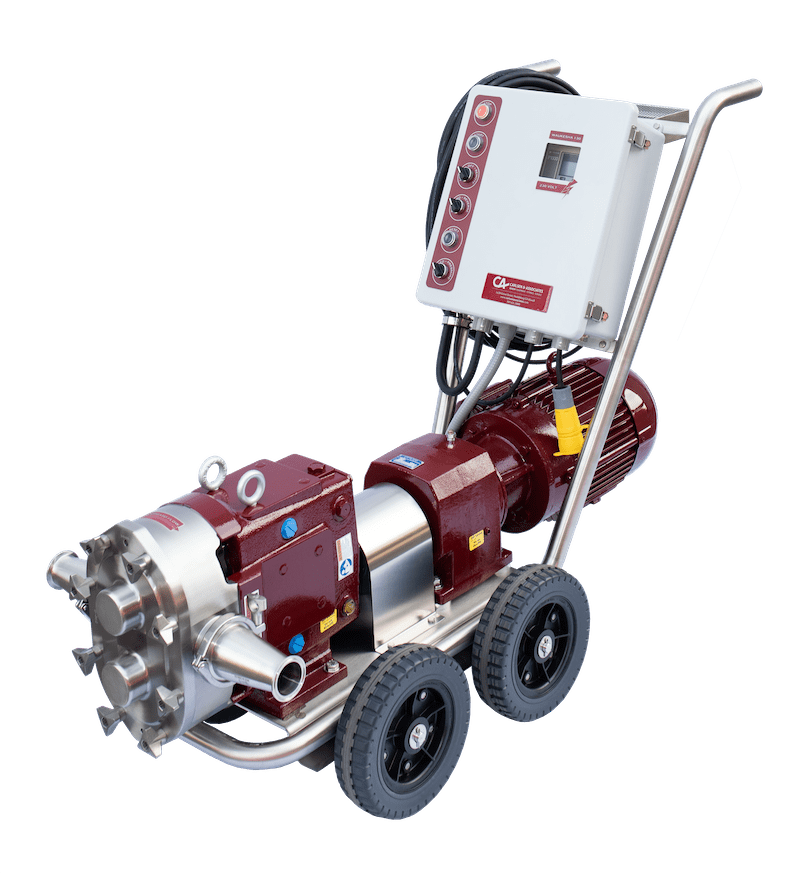

Carlsen 130 Positive Displacement Pump
This is the one pump that will do virtually all phases of wine production from moving must (up to 20 tons per hour) from the destemmer-crusher, juice transfers, barrel work, filtration, (with flows as small as 10 gpm with pressures to 3+ bar) and bottling.
Carlsen 130 Pump Head
Carlsen 130 Pump Head
- Constructed of 316 stainless steel
- Single O-ring seals
- Stainless steel rotors
- 3″ Triclamp inlet and outlet
Motor
Motor
- 5 hp high efficiency motor
- Totally enclosed, fan cooled
- Cast iron construction
Gearbox
Gearbox
- Helical gearing
- Output speed of 547 rpm
Electrical Controls
Electrical Controls
- Variable frequency drive
- Waterproof enclosure and switches
- Two-position forward/reverse switch
- Removable remote control feature with a three-position local/off/remote selector switch, 6″ pigtail and watertight cord connector
- (All of our remote devices are compatible with this connection)
- 50′ of power cord (the electrical plug is to be supplied by the customer)
- Speed control mounted in a rubber-booted plastic housing with 50′ of cord
Cart
Cart
- Foam-filled tires with polypropylene hubs
- 1-1/2″ stainless steel tubing
- Stainless steel fitting basket
- Carlsen solid tires
Applications
Applications
- Must Pumping
- Barrel Work
- Juice Transfer
- Filtering
- Bottling
Standard Features
Standard Features
- Flows 0 – 135 gpm
- Pressures up to 80 psi
- Domestic Motor and Gearbox
- Variable Frequency Drive
- NEMA 4X Enclosure
- Variable Speed
- Remote Speed Control
- Stainless Steel Cart
- Two-Year Warranty
Options Available
Options Available
- Pressure Control
- Fitting Variations
