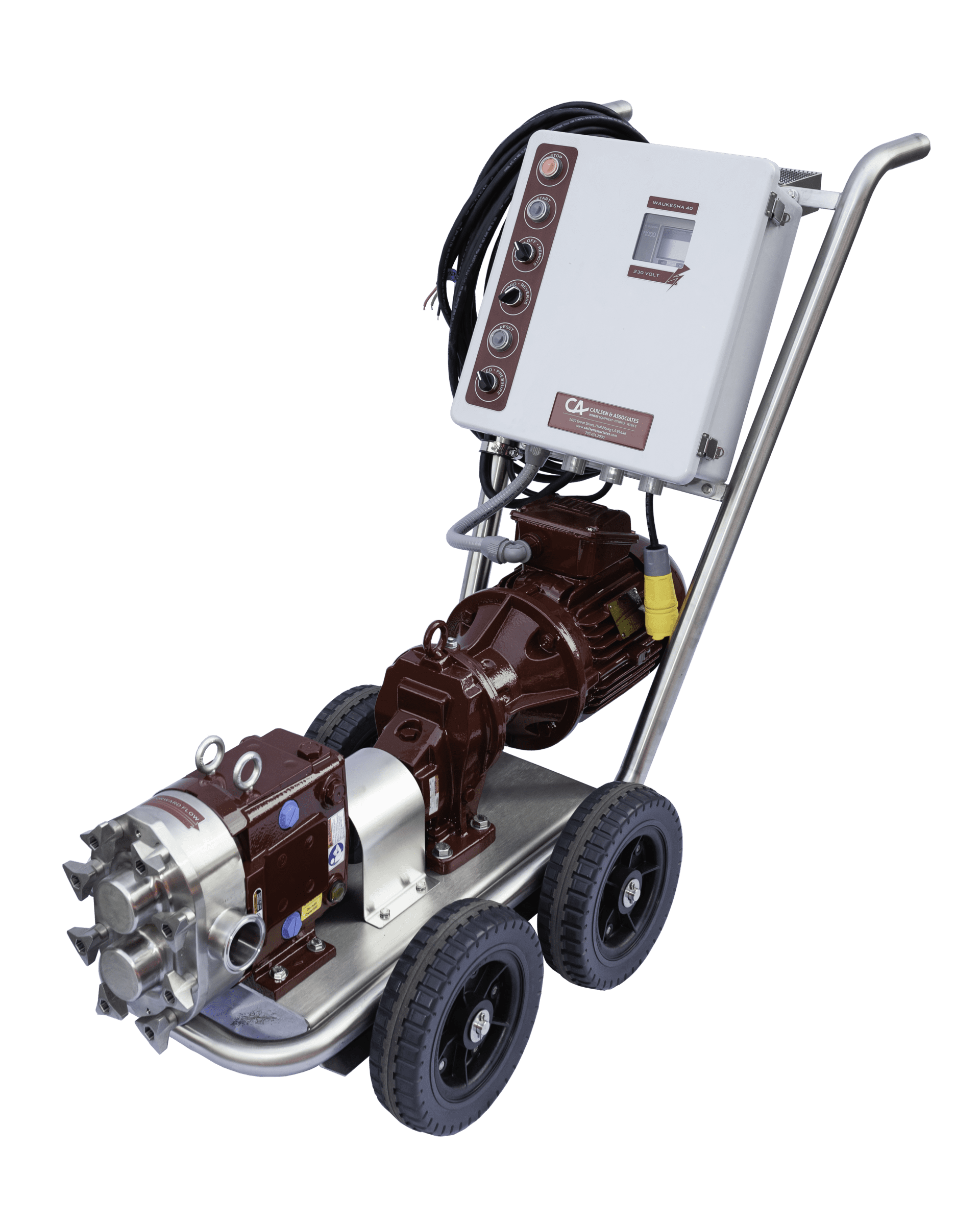

Carlsen 40 Positive Displacement Pump

This pump will produce flows from 0 - 40 gpm at 60 psi making the Carlsen 40 suitable for many projects, from barrel work to the bottling line. Its simple construction and low maintenance provides for superior performance.

Specification

Carlsen 40 Pump Head

  • Constructed of 316 stainless steel
  • Single O-ring seals
  • Stainless steel rotors
  • 2″ Triclamp inlet and outlet

Motor

  • 3 hp high efficiency motor
  • Totally enclosed, fan cooled
  • Cast iron construction

Gearbox

  • Helical gearing
  • Output speed of 547 rpm

Electrical Controls

  • Variable frequency drive
  • Waterproof enclosure and switches
  • Two-position forward/reverse switch
  • Removable remote control feature with a three-position local/off/remote selector switch, 6″ pigtail and watertight cord connector
  • (All of our remote devices are compatible with this connection)
  • 50′ of power cord (the electrical plug is to be supplied by the customer)
  • Speed control mounted in a rubber-booted plastic housing with 50′ of cord

Cart

  • Foam-filled tires with polypropylene hubs
  • 1-1/2″ stainless steel tubing
  • Stainless steel fitting basket

Applications

  • Bottling
  • Filtering
  • Barrel Work

Standard Features

  • Flows 0 – 40 gpm
  • Pressures up to 60 psi
  • Domestic Motor and Gearbox
  • Variable Frequency Drive
  • NEMA 4X Enclosure
  • Variable Speed
  • Remote Speed Control
  • Stainless Steel Cart
  • Two-Year Warranty

Options Available

  • Pressure Control
  • Fitting Variations
