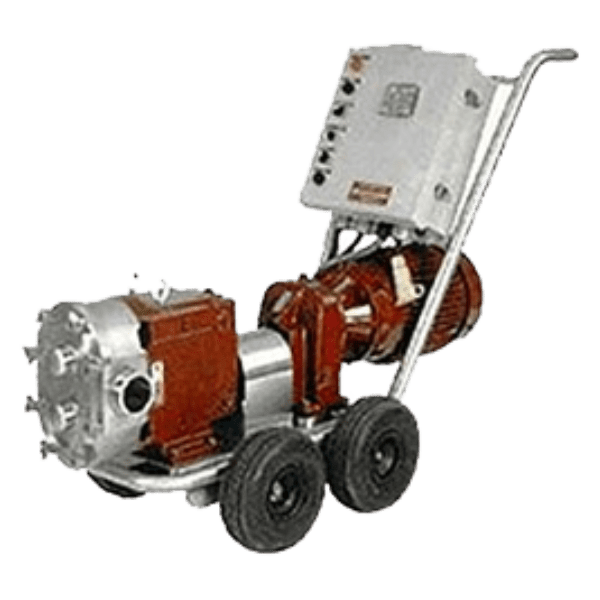

Carlsen 60 Positive Displacement Pump
The Carlsen 60 will produce flows from 0-70 gpm at 70 psi. This makes it suitable for barrel work, bottling, filtering and juice transfers.
Specifications
Carlsen 60 Pump Head
- Constructed of 316 stainless steel
- Single O-ring seals
- Stainless steel rotors
- 2-1/2″ Triclamp inlet and outlet
Motor
- 5 hp high efficiency motor
- Totally enclosed, fan cooled
- Cast iron construction
Gearbox
- Helical gearing
- Output speed of 547 rpm
Electrical Controls
- Variable frequency drive
- Waterproof enclosure and switches
- Two-position forward/reverse switch
- Removable remote control feature with a three-position local/off/remote selector switch, 6″ pigtail and watertight cord connector
- (All of our remote devices are compatible with this connection)
- 50′ of power cord (the electrical plug is to be supplied by the customer)
- Speed control mounted in a rubber-booted plastic housing with 50′ of cord
Cart
- Foam-filled tires with polypropylene hubs
- 1-1/2″ stainless steel tubing
- Stainless steel fitting basket
Applications
- Barrel Work
- Juice Transfer
- Filtering
- Bottling
Standard Features
- Flows 0 – 70 gpm
- Pressures up to 80 psi
- Domestic Motor and Gearbox
- Variable Frequency Drive
- NEMA 4X Enclosure
- Variable Speed
- Remote Speed Control
- Stainless Steel Cart
- Two-Year Warranty
Options Available
- Pressure Control
- Fitting Variations
