Yamada NDP-40
Yamada NDP-40 Wine Pump
This pump will produce flows to 60 gpm and up to 100 psi, providing a great tool for barrel work, juice pans, screened pump overs and many other projects throughout your facility.
Yamada NDP-40 Wine Pump
This pump will produce flows to 60 gpm and up to 100 psi, providing a great tool for barrel work, juice pans, screened pump overs and many other projects throughout your facility.
Yamada NDP-40 BSH Double Diaphragm Air Pump
Non-lubricated air valve
Hytrel diaphragms
2" Triclamp inlet and outlet fittings
Stainless steel wetted parts
Air and Pressure Regulation
1/2" air filter, regulator
Ball valve control, (the air inlet fitting is to be supplied by the customer)
Applications
Barrel Work
Juice Transfer
Screened Pump Overs
Bottling
Standard Features
Non-Lubricated Air Valve
Air Filter and Regulator
Stainless Steel Cart
Double Diaphragm
Triclamp or I-Line Fittings
Two-Year Warranty
Options
Doubling Kit for Increased Pressure
Call for Pricing

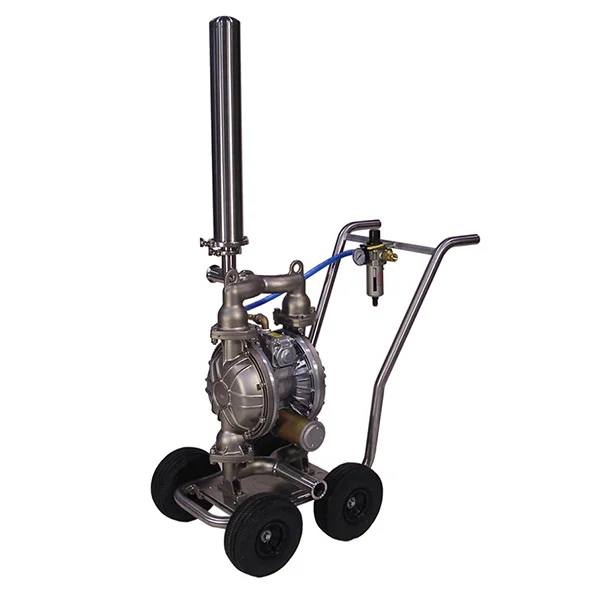

Surge Suppressor
Constructed of 304 stainless steel
4" diameter x 33" tall
The suppressor has been designed to substantially reduce the pulse of the air pump
Cart
1-1/2" stainless steel tubing cart
Foam-filled tires with polypropylene hubs
Stainless steel fitting basket
The air requirement for all air pumps is .75 cfm to 1 gpm
