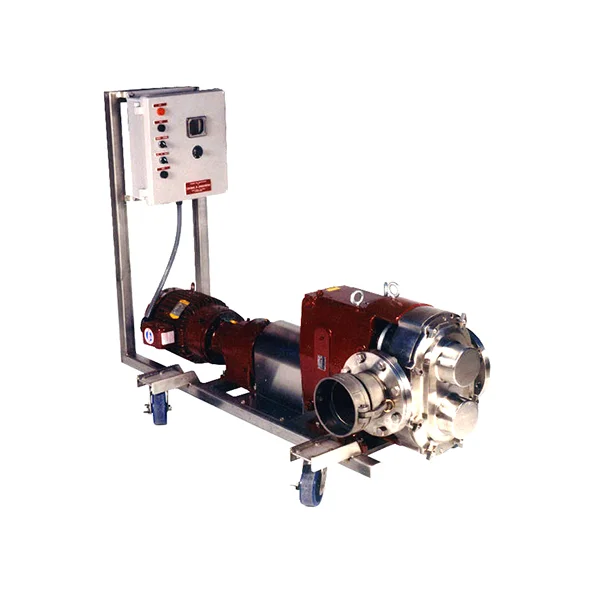

Waukesha 320 Wine and Must Pump



Waukesha 320 Wine and Must Pump


This pump will produce flows of 0 - 335 gpm at 50 psi. The Waukesha 320 provides the final step in must and wine handling. Moving must, up to 80 tons per hour, from the destemmer-crusher and high volume juice transfers.



Waukesha 320 UII Pump Head

  • Constructed of 316 stainless steel
  • Single mechanical seals
  • Stainless steel rotors
  • 6" flange to a 6" female camlock fitting for a Carlsen screw sump
  • 6" flange to 6" male camlock fitting for the must line

Motor

  • 20 hp high efficiency motor
  • Totally enclosed, fan cooled
  • Cast iron construction

Applications
Whole Cluster Pumping
Must Pumping
Juice Transfer
Tank Transfer

Standard Features
Flows 0 - 335 gpm
Pressures up to 80 psi
Domestic Motor and Gearbox
Variable Frequency Drive
NEMA 4X Enclosure
Variable Speed
Remote Speed Control
Stainless Steel Cart
Two Year Warranty

Options Available
Pressure Control
Fitting Variations

Call for Pricing

Gearbox

  • Helical gearing
  • Output speed of 547 rpm

Electrical Controls

  • Variable frequency drive
  • Waterproof enclosure and switches
  • Two-position forward/reverse switch
  • Removable remote control feature with a three-position local/off/remote selector switch, 6" pigtail and watertight cord connector
    (All of our remote devices are compatible with this connection)
  • 50' of power cord (the electrical plug is to be supplied by the customer)
  • Speed control mounted in a rubber-booted plastic housing with 50' of cord

Cart

  • Stainless steel swivel casters with brakes
  • 2" stainless steel square tubing frame
