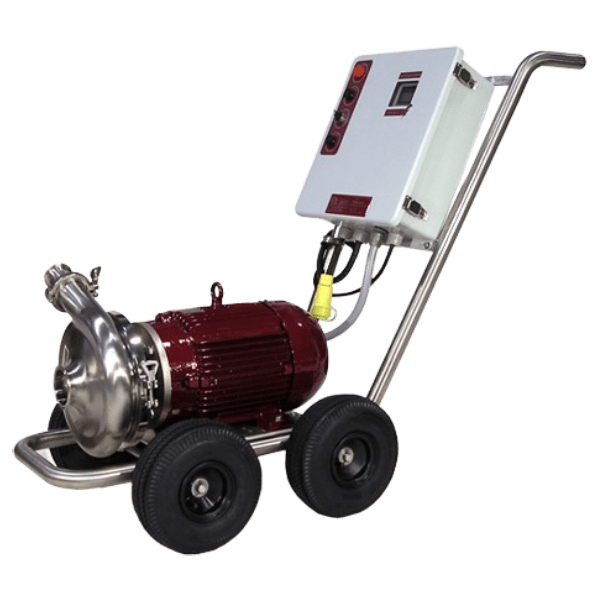

Waukesha 2105/20 Wine Pump
This pump will produce flows of approximately 450 gpm at 125’ of head (55+ psi), making this pump ideal for pump overs, blends, transfers and tank to barrel work. The variable frequency drive allows this pump to be used year round for other cellar and crush pad projects.
Specifications
Waukesha 2105 Centrifugal Pump Head
- Constructed of 316 SST with electropolished finish
- 8 1/2″ 316L impeller
- 4″ Triclamp inlet
- 4″ Triclamp discharge
- Includes two 3″ x 4″ adapters
Motor
- 20 hp @ 1750 rpm motor
- Totally enclosed, fan cooled
- C-Face JM frame
- Cast iron housing
Electrical Controls
- Variable frequency drive
- Waterproof enclosure and switches
- Removable remote control feature with a three-position local/off/remote selector switch, 6″ pigtail and watertight cord connector (All of our remote devices are compatible with this connection)
- 50′ of power cord (the electrical plug is to be supplied by the customer)
- Automatic cavitation control
- Speed control mounted in a rubber-booted plastic housing with 50′ of cord
Cart
- Foam-filled tires with polypropylene hubs
- 1-1/2″ stainless steel tubing
- Stainless steel fitting basket
Applications
- Pump Overs
- Juice Transfer
- Barrel Racking
Standard Features
- Flows 0 – 450 gpm
- Pressures up to 55+ psi
- 20 hp Motor
- Variable Frequency Drive
- NEMA 4X Enclosure
- Variable Speed
- Remote Speed Control
- Stainless Steel Cart
- Two-Year Warranty
Options Available
- Float Control
- Timer Control
- Fitting Variations
