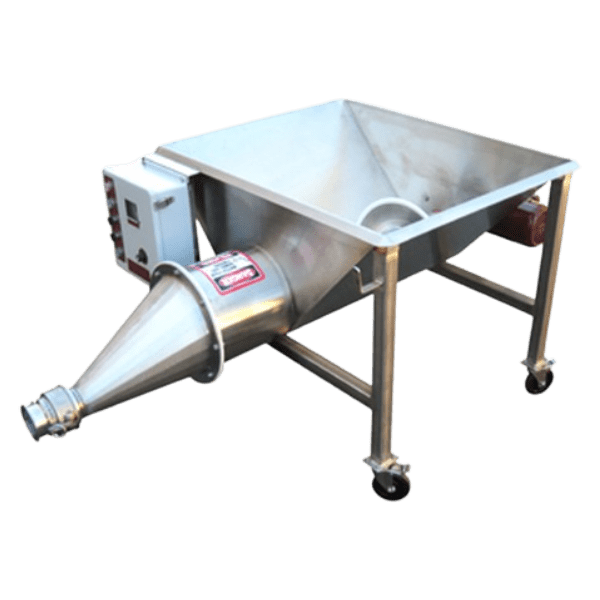

Screw Sump For The Waukesha 220 And 320
These screw pumps for the Carlsen 220 and 320 are portable and sit under discharge of the destemmer-crusher. The start/stop on the screw sump will coordinate with the must pump control so that starting and stopping the sump will also start and stop the must pump. This screw sump for the Carlsen 220 and 320 will pump whole cluster whites to the press, increasing the press's loading capacity.
Specifications
Construction
- 1-1/2″ square tube stainless steel frame
- 12 gauge stainless steel body
- Stainless steel casters with brakes
Screw Conveyor
- 12″ diameter stainless steel conveyor screw
- Seal-welded on both sides of screw
- UHMW flight edging
Motor and Gearbox
- 2 hp TEFC motor
- 60 rpm Gearbox
Electrical Controls
- Variable frequency drive
- Waterproof enclosure and switches
- Forward/Reverse switch
- Panel mounted speed control
- Pigtail for utilizing remote stop/start devices
- 50′ of power cord (the electrical plug is to be supplied by the customer)
- 10′ of cord for connection to the must pump control for stop/start devices
Fittings and Connections
- 4″ or 6″ male camlock on sump snout
- 4″ female camlock x 4″ Triclamp fitting with clamp and gasket (connects sump to 220 pump)
- All fittings are stainless steel
Standard Features
- Designed for the Carlsen 220 and the Carlsen 320
- Domestic Gearbox and Motor
- Stainless Steel Construction
- Variable Frequency Drive
- NEMA 4X Enclosure
- Variable Speed
- Forward and Reverse
- Two-Year Warranty
Connection Features
- Automatic Control of the Pump’s Stop/Start Function
- Easy Camloc Connection
