Screw Sump For The Waukesha 130

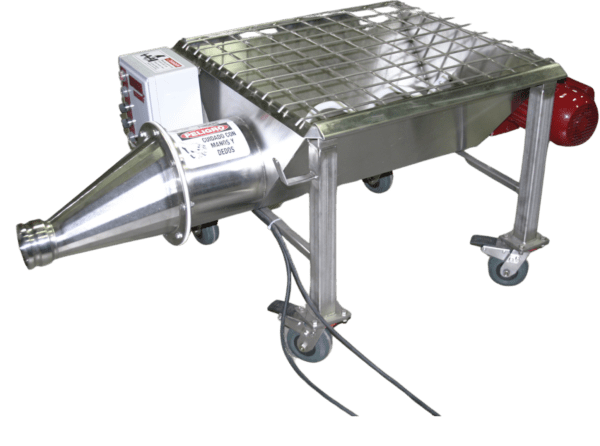

This portable sump for the Carlsen 130 sits under the discharge of the destemmer-crusher or receiving hopper. The start/stop on the screw sump will coordinate with the must pump control so that starting and stopping the sump will also start and stop the must pump. These portable sumps for the Carlsen 130 help your winemaking operation by fitting seamlessly into your current system.
Specifications
Construction
- 1-1/2″ square tube stainless steel frame
- 12 gauge stainless steel body
- Stainless steel casters with brakes
Screw Conveyor
- 9″ diameter stainless steel conveyor screw
- Seal-welded on both sides of screw
- UHMW flight edging
Motor and Gearbox
- 1 hp TEFC motor
- 60 rpm Gearbox
Electrical Controls
- Variable frequency drive
- Waterproof enclosure and switches
- Forward/Reverse switch
- Panel mounted speed control
- Pigtail for utilizing remote stop/start devices
- 50′ of power cord (the electrical plug is to be supplied by the customer)
- 10′ of cord for connection to the must pump control for stop/start devices
Fittings and Connections
- 4″ male camlock on sump snout
- 4″ female camlock x 3″ Triclamp fitting with clamp and gasket (connects sump to pump)
- All fittings are stainless steel
Standard Features
- Designed for the Carlsen 130
- Domestic Gearbox and Motor
- Stainless Steel Construction
- Variable Frequency Drive
- NEMA 4X Enclosure
- Variable Speed
- Forward and Reverse
- Two-Year Warranty
Connection Features
Automatic Control of the Pump’s Stop/Start Function
Easy Camloc Connection
