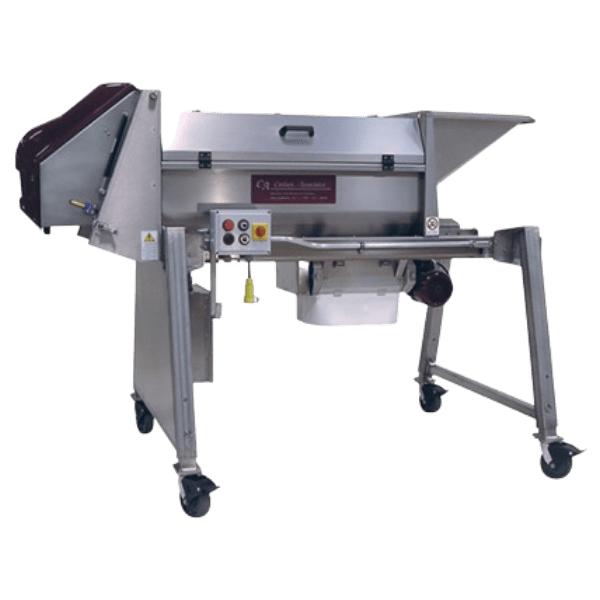

Puleo Vega 10 Destemmer Crusher
The Puleo Vega 10 is equipped with domestically available electrical components to ensure component availability. Its' simple operation and configuration will provide the best possible results in fruit handling.
Construction
Construction
- Hinged drive end
- Easy shaft and cage removal without the use of tools
- Stainless steel electropolished basket, two hole diameters available
- Stainless steel frame and inspection doors
- 4 stainless steel casters with brakes
- Adjustable legs for up to 55″ of clearance
Controls
Controls
- Variable frequency drive is mounted in a stainless steel enclosure
- Stop, start, and speed control are panel mounted
- 50’ of power cord (cord cap is to be supplied by the customer)
- Safety switches are on all covers and doors
- A pigtail is supplied on the control panel for remote devices
Crush Roll Assembly
Crush Roll Assembly
- TEFC motor
- Slide-out design for when crush rolls are not in use
- Adjustable crush rolls
Applications
Applications
- 1 – 10 tons per hour
- Destem and/or Crush to a
- Carlsen Must System
- Destem and/or Crush
- to 1/2 or 1 ton Picking Bin
Standard Features
Standard Features
- Removable Basket
- Removable Shaft
- Variable Speed Control
Adjustable Crush Rolls
Two-Year Warranty
Options
Options
- Single Phase Power
- 18 or 22 mm Cage
