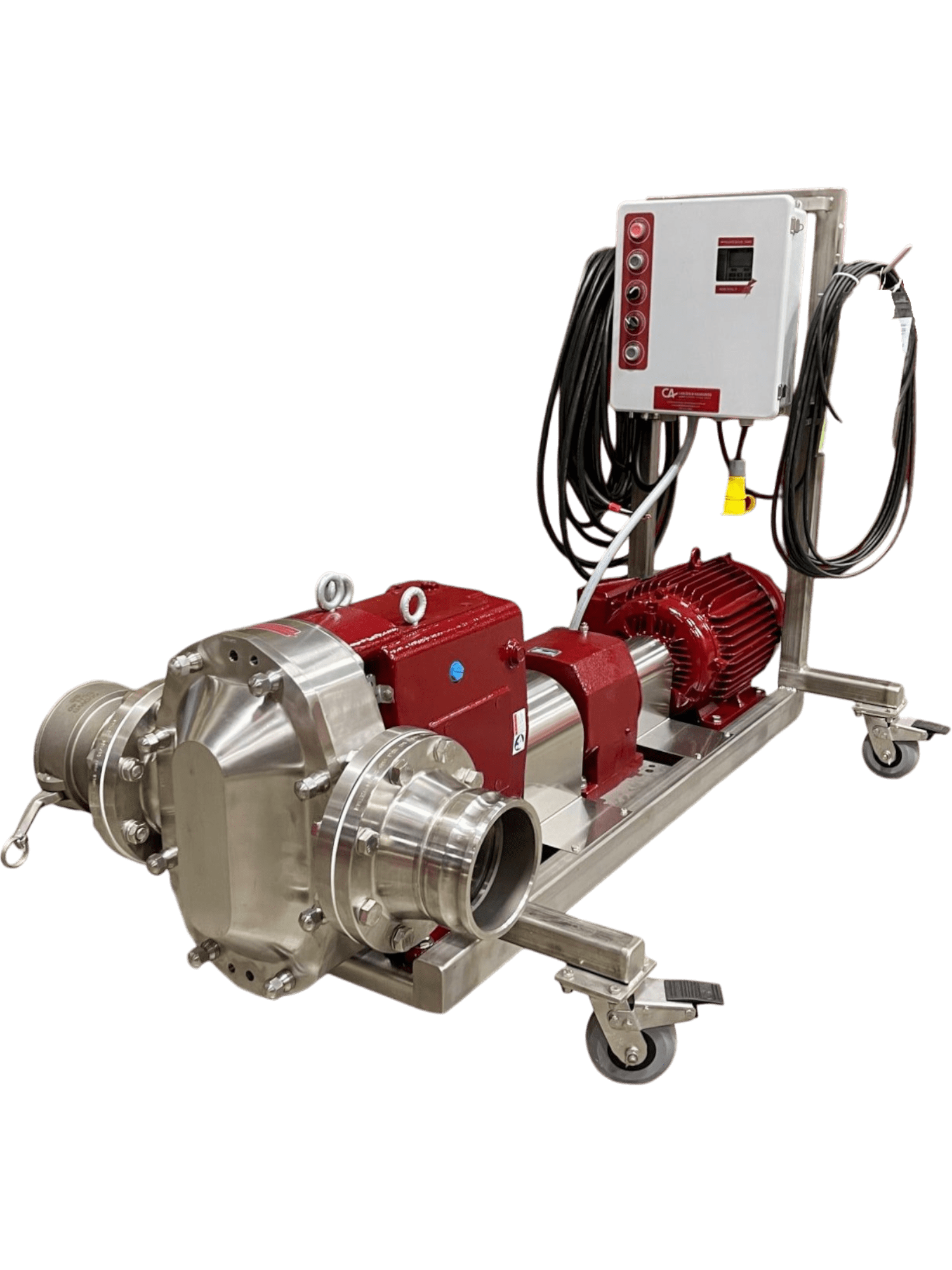

Carlsen 320 Wine and Must Pump
This pump will produce flows of 0 - 335 gpm at 50 psi. The Carlsen 320 provides the final step in must and wine handling. Moving must, up to 80 tons per hour, from the destemmer-crusher and high volume juice transfers.
Specifications
Carlsen 220 Pump Head
- Constructed of 316 stainless steel
- Single mechanical seals
- Stainless steel rotors
- 6″ flange to a 6″ female camlock fitting for a Carlsen screw sump
- 6″ flange to 6″ male camlock fitting for the must line
Motor
- 20 hp high efficiency motor
- Totally enclosed, fan cooled
- Cast iron construction
Gearbox
- Helical gearing
- Output speed of 547 rpm
Electrical Controls
- Variable frequency drive
- Waterproof enclosure and switches
- Two-position forward/reverse switch
- Removable remote control feature with a three-position local/off/remote selector switch, 6″ pigtail and watertight cord connector
- (All of our remote devices are compatible with this connection)
- 50′ of power cord (the electrical plug is to be supplied by the customer)
- Speed control mounted in a rubber-booted plastic housing with 50′ of cord
Cart
- Stainless steel swivel casters with brakes
- 2″ stainless steel square tubing frame
Applications
- Whole Cluster Pumping
- Must Pumping
- Juice Transfer
- Tank Transfer
Standard Features
- Flows 0 – 335 gpm
- Pressures up to 80 psi
- Domestic Motor and Gearbox
- Variable Frequency Drive
- NEMA 4X Enclosure
- Variable Speed
- Remote Speed Control
- Stainless Steel Cart
- Two-Year Warranty
Options Available
- Pressure Control
- Fitting Variations
